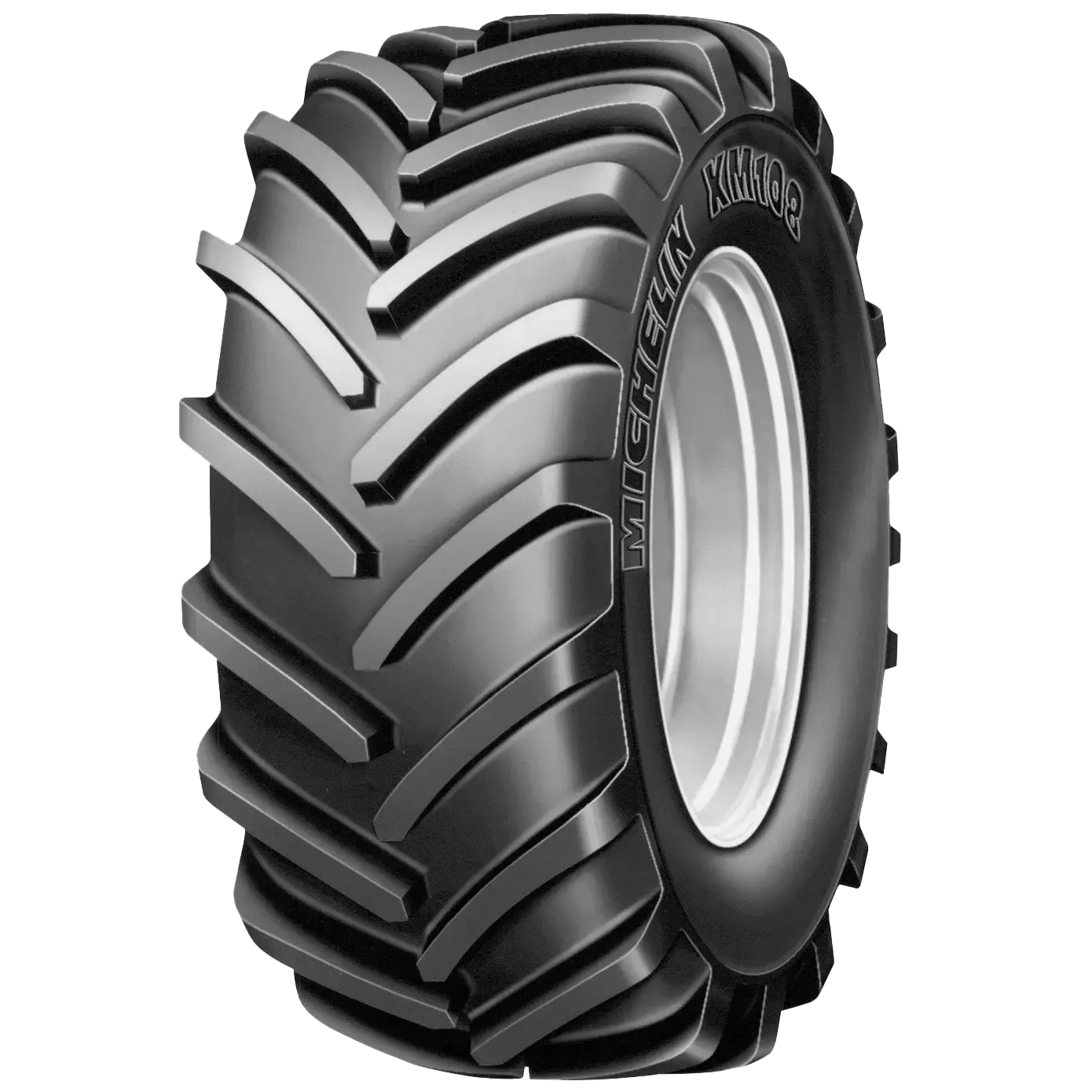

MICHELIN XM108
Increased service life and mileage for 80 to 220 HP tractors
CTIS (Central Tyre Inflation System) is a convenient inflation system allowing the driver to adjust your vehicle's tyre pressure from the cab - without leaving your seat. Discover the benefits and how CTIS works.
Why choose the MICHELIN XM108 tyre?
Versatility
Productivity
Tyre life
Comfort
Tyre Technical Specifications
Technical Specifications
| Product | MICHELIN X M108 [Michelin, Radial, Agriculture, None] - 320/65R18 |
|---|---|
| Overall Diameter | 34 inch |
| Section width | 12 inch |
| Recommended rims | W9x18 |
| Approved rims | W10x18 |
| Mini Dual Spacing | 17.09 inch |
| Rolling circumference (mm) | 102 inch |
| Filling volume 75% (lts) | 63.75 l |
| Tread depth | 1.1 inch |
| Load Index | 109 |
| Speed Index | A8 |
| CAI | 123898 |
Load & Pressure
|
psi |
6 |
7 |
9 |
12 |
15 |
17 |
20 |
23 |
25 |
26 |
28 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||
|
10 km/h 6 mph |
400 882 |
535 1179 |
670 1477 |
805.38464355469 1776 |
940.76922607422 2074 |
1076.1538085938 2373 |
1211.5384521484 2671 |
1346.9230957031 2969 |
1414.6153564453 3119 |
1482.3077392578 3268 |
1550 3417 |
|
30 km/h 19 mph |
390 860 |
500 1102 |
610 1345 |
707.5 1560 |
805 1775 |
902.5 1990 |
1000 2205 |
1100 2425 |
|||
|
40 km/h 25 mph |
460 1014 |
570 1257 |
662.5 1461 |
755 1664 |
847.5 1868 |
940 2072 |
1030 2271 |
||||
|
50 km/h 31 mph |
430 948 |
520 1146 |
606 1336 |
692 1526 |
778 1715 |
864 1905 |
950 2094 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN X M108 [Michelin, Radial, Agriculture, None] - 320/65R18 |
|---|---|
| Overall Diameter | 34 inch |
| Section width | 12 inch |
| Recommended rims | W9x18 |
| Approved rims | W10x18 |
| Mini Dual Spacing | 17.09 inch |
| Rolling circumference (mm) | 102 inch |
| Filling volume 75% (lts) | 63.75 l |
| Tread depth | 1.1 inch |
| Load Index | 109 |
| Speed Index | A8 |
| CAI | 123898 |
Load & Pressure
|
psi |
6 |
7 |
9 |
12 |
15 |
17 |
20 |
23 |
25 |
26 |
28 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||
|
10 km/h 6 mph |
400 882 |
535 1179 |
670 1477 |
805.38464355469 1776 |
940.76922607422 2074 |
1076.1538085938 2373 |
1211.5384521484 2671 |
1346.9230957031 2969 |
1414.6153564453 3119 |
1482.3077392578 3268 |
1550 3417 |
|
30 km/h 19 mph |
390 860 |
500 1102 |
610 1345 |
707.5 1560 |
805 1775 |
902.5 1990 |
1000 2205 |
1100 2425 |
|||
|
40 km/h 25 mph |
460 1014 |
570 1257 |
662.5 1461 |
755 1664 |
847.5 1868 |
940 2072 |
1030 2271 |
||||
|
50 km/h 31 mph |
430 948 |
520 1146 |
606 1336 |
692 1526 |
778 1715 |
864 1905 |
950 2094 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
(1) When the country's legislation allows it.
(2) For size 650/65 R42 158D.
