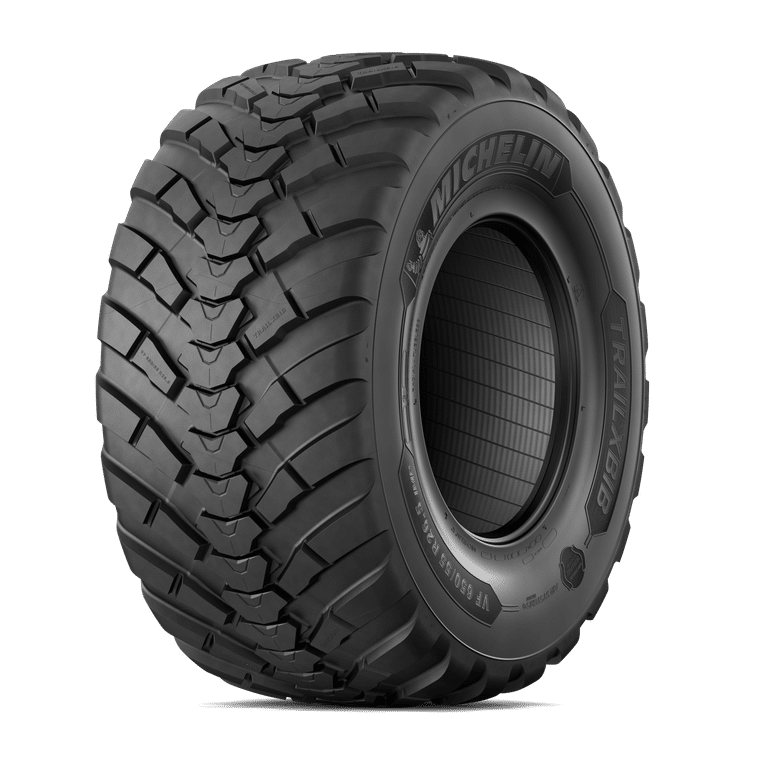

MICHELIN TRAILXBIB
1 picture trailxbib 02
MICHELIN TRAILXBIB 02
1 picture trailxbib 03
MICHELIN TRAILXBIB 03
ultraflex
MICHELIN Ultraflex Technology
/4
  • Trailer & Implements
  • Agricultural Transport
  • Load& Carry

MICHELIN TRAILXBIB

Close
MICHELIN
TRAILXBIB
Select a dimension
back
Select a dimension
  • VF 500/60R22.5 IMP 160D TL
  • VF 560/60R22.5 IMP 166D TL
  • VF 600/50R22.5 IMP 164D TL
  • VF 710/45R22.5 IMP 170D TL
  • VF 710/65R26 IMP 184D TL
    28LR26
  • VF 600/55R26.5 IMP 170D TL
  • VF 650/55R26.5 IMP 174D TL
  • VF 650/65R26.5 IMP 179D TL
  • VF 710/50R26.5 IMP 176D TL
  • VF 600/60R30.5 IMP 175D TL
  • VF 650/65R30.5 IMP 181D TL
  • VF 750/60R30.5 IMP 187D TL
  • VF 850/50R30.5 IMP 188D TL
  • VF 800/60R32 IMP 191D TL
Close
MICHELIN
TRAILXBIB
Select a dimension
back
Select a dimension
  • VF 500/60R22.5 IMP 160D TL
  • VF 560/60R22.5 IMP 166D TL
  • VF 600/50R22.5 IMP 164D TL
  • VF 710/45R22.5 IMP 170D TL
  • VF 710/65R26 IMP 184D TL
    28LR26
  • VF 600/55R26.5 IMP 170D TL
  • VF 650/55R26.5 IMP 174D TL
  • VF 650/65R26.5 IMP 179D TL
  • VF 710/50R26.5 IMP 176D TL
  • VF 600/60R30.5 IMP 175D TL
  • VF 650/65R30.5 IMP 181D TL
  • VF 750/60R30.5 IMP 187D TL
  • VF 850/50R30.5 IMP 188D TL
  • VF 800/60R32 IMP 191D TL

MICHELIN TRAILXBIB

MICHELIN 2020 - MICHELIN TRAILXBIB in Valladolid factory - Spain (EN)

A NEW INNNOVATION FOR AGRICULTURAL TRAILERS

Watch this video to see the production and design engineers at the Michelin factory in Spain explain how we designed and built the brand new MICHELIN TRAILXBIB tyre with the customer in mind.

WHY CHOOSE THIS TYRE?

service life

LONGEVITY

  • Limited scrub thanks to high clearance angle of lugs
  • High levels of rubber to be worn across tyre tread
  • Notched lugs to improve flexibility and flattening to improve regular wear

endurance

OUTSTANDING ENDURANCE

  • New VF casing designed for robustness and low pressure impact
  • Steel belted construction

large footprint

SELF-CLEANING

  • Specific tread pattern design aids the Evacuation of mud
  • Wide and divergent inter-lugs
  • No “closed” areas to trap mud

picture trailxbib

NEW DESIGN

1) Excellent road handling due to:
- Central RIB for robustness
- Steel belted construction
- CTIS compatibility for optimised pressure on the road and in the field

2) Puncture and aggression resistant thanks to:
- Steel belted construction
- Extra rubber between the lugs

3) Protects Crops
- Rounded shoulders
- VF MICHELIN Ultraflex Technology
- For low soil compaction and optimised yields

RELATED SERVICES AND SOLUTIONS

tractor equipped with central tire inflation system to ensure traction on mud and limit soil compaction

Range compatible with Central Tyre Inflation System (CTIS)

Control the pressure of your tyre from your tractor seat, get the best performance from your tyre: longevity, traction on all the field while protecting your soil and increasing your yield.

Technical Specifications

VF MICHELIN TRAILXBIB - 500/60R22.5
46 inch
20 inch
AG16.00(H2)x22.5
15.00x22.5-16.00x22.5-17.00x22.5
25.75 inch
135 inch
205.5 l
0.8 inch
160
D
229116

Load & Pressure

Take the load and type of work to be done into account when adjusting the pressure**

psi

12

13

15

17

22

26

30

35

39

44

46

(kg - lbs)

10 km/h

6 mph

3125

6889

3335

7352

3545

7815

3970

8752

4600

10141

5090

11222

5580

12302

6070

13382

6560

14462

7050

15543

7375

16259

25 km/h

16 mph

2775

6118

2965

6537

3155

6956

3530

7782

4100

9039

4535

9998

4975

10968

5410

11927

5845

12886

6285

13856

6575

14495

40 km/h

25 mph

2450

5401

2615

5765

2780

6129

3105

6845

3600

7937

3990

8796

4375

9645

4765

10505

5155

11365

5540

12214

5800

12787

50 km/h

31 mph

2225

4905

2375

5236

2525

5567

2825

6228

3275

7220

3630

8003

3980

8774

4335

9557

4685

10329

5040

11111

5275

11629

65 km/h

40 mph

1900

4189

2030

4475

2155

4751

2415

5324

2800

6173

3100

6834

3400

7496

3700

8157

4000

8818

4300

9480

4500

9921

**IMPORTANT

The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.

Picto visuel contact hero image yellow bib heart Tyre

Find out more…

Find technical and commercial information about this tyre in our product datasheet
