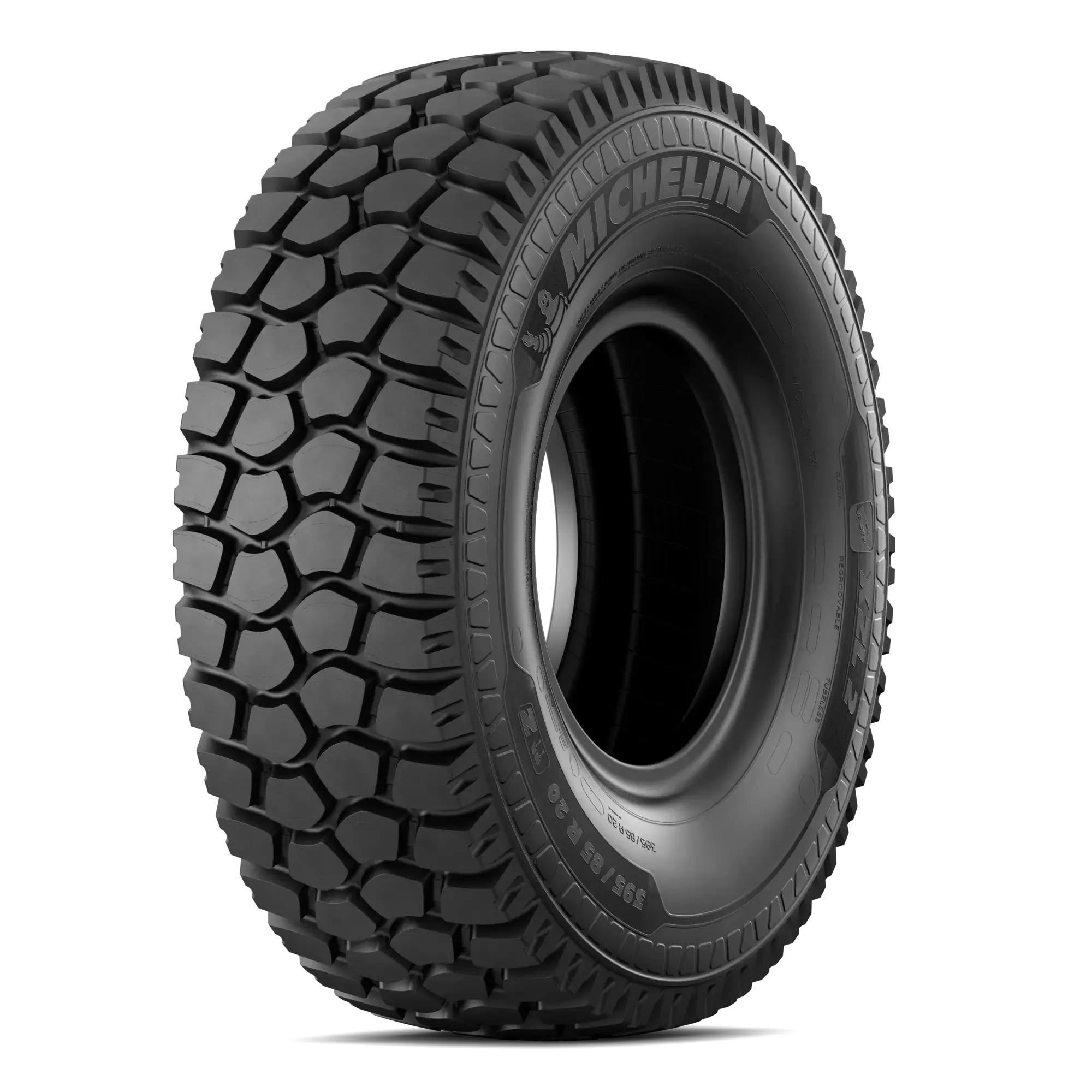

MICHELIN XZL 2
Versatile tyre even for track and sand for military vehicles
Why choose the MICHELIN XZL 2 tyre?
Mobility
Safety
Tyre Technical Specifications
Technical Specifications
| Product | MICHELIN XZL 2 [Michelin, Radial, Defense mobility, None] - 395/85R20 |
|---|---|
| Overall Diameter | 46 inch |
| Section width | 15 inch |
| Approved rims | 10.00W |
| Rolling circumference (mm) | 3559 |
| Filling volume 100% (lts) | 231 l |
| Load Index | 168 |
| Speed Index | K |
| Max load per tyre single | 11200 kg / 24692 lbs |
| Tread depth | 0.8 inch |
| CAI | 519331 |
Load & Pressure
|
psi |
80 |
83 |
87 |
91 |
94 |
98 |
102 |
105 |
109 |
112 |
116 |
120 |
123 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) axle-load | |||||||||||||
|
nominal |
7567.5673828125 16684 |
7870.2705078125 17351 |
8172.9731445312 18018 |
8475.67578125 18686 |
8778.3779296875 19353 |
9081.0810546875 20020 |
9383.7841796875 20688 |
9686.486328125 21355 |
9989.189453125 22022 |
10291.891601562 22690 |
10594.594726562 23357 |
10897.296875 24024 |
11200 24692 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN XZL 2 [Michelin, Radial, Defense mobility, None] - 395/85R20 |
|---|---|
| Overall Diameter | 46 inch |
| Section width | 15 inch |
| Approved rims | 10.00W |
| Rolling circumference (mm) | 3559 |
| Filling volume 100% (lts) | 231 l |
| Load Index | 168 |
| Speed Index | K |
| Max load per tyre single | 11200 kg / 24692 lbs |
| Tread depth | 0.8 inch |
| CAI | 519331 |
Load & Pressure
|
psi |
80 |
83 |
87 |
91 |
94 |
98 |
102 |
105 |
109 |
112 |
116 |
120 |
123 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) axle-load | |||||||||||||
|
nominal |
7567.5673828125 16684 |
7870.2705078125 17351 |
8172.9731445312 18018 |
8475.67578125 18686 |
8778.3779296875 19353 |
9081.0810546875 20020 |
9383.7841796875 20688 |
9686.486328125 21355 |
9989.189453125 22022 |
10291.891601562 22690 |
10594.594726562 23357 |
10897.296875 24024 |
11200 24692 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Related Services and Solutions
(1) Conditions: Measurements carried out in October & November 2018 at our Ladoux research and development centre with parameters corrected and aligned to the European network of laboratories. Comparison between MICHELIN XZL 2 tyre and MICHELIN XZL/XZL+ tyre.
(2) Conditions: Robustness compared to the breaking energy regulatory standard for a better resistance to tread punctures. Measurements carried out in March 2022 at our Ladoux research and development centre; Size: 395/85 R 20; Protocol: FMVSS (Federal Motor Vehicle Safety Standard) 119 about “New Pneumatic Tyres for Motor Vehicles with a GVWR of more than 4,536 kg (10,000 lbs)”. It is established by the National Highway TrafÏc Safety Administration, Dpt of transportation, USA.
