MICHELIN XS [CONSTRUCTION]
Find a dealer Get a quote

MICHELIN XS [CONSTRUCTION]

Square
Flotation Productivity Robustness
Tyre MICHELIN XS [CO/INF] Summer tyre 21.00 R25 tyre Square
Tyre MICHELIN XS [CO/INF] Summer tyre 21.00 R25 tyre Square
Tyre MICHELIN XS [CO/INF] Summer tyre 21.00 R25 tyre Square
Tyre MICHELIN XS [CO/INF] Summer tyre 21.00 R25 tyre Square
Tyre MICHELIN XS [CO/INF] Summer tyre 21.00 R25 tyre Square
Tyre MICHELIN XS [CO/INF] Summer tyre 21.00 R25 tyre Square

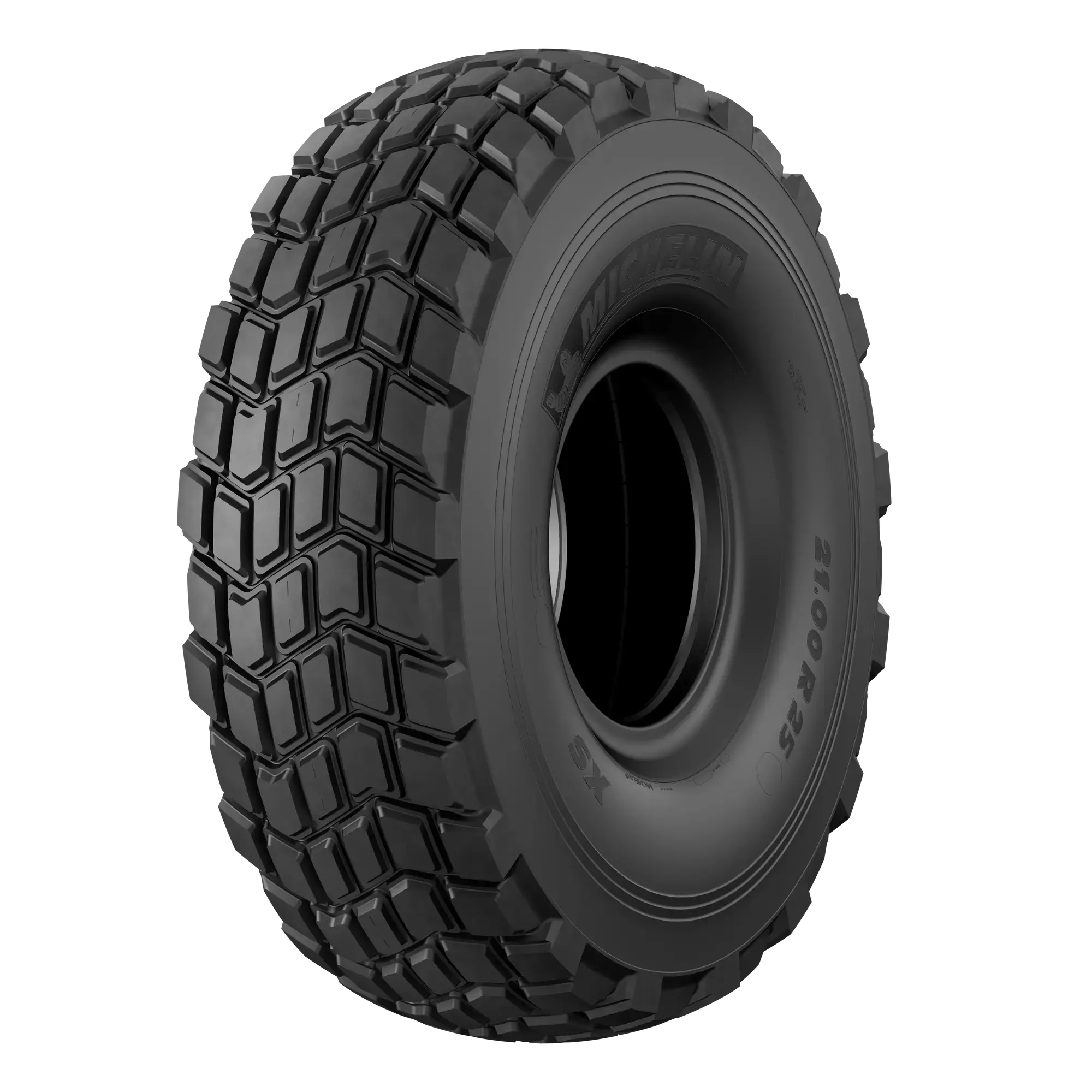

Tubeless radial tyre for adt and special machines working in deep sand.

Feeder
Medium wheel loader (25''-33'')
Articulated Dump Truck (ADT)
Self-propelled
Airport fire fighting vehicle / Crashtender
Aircraft towbarless tractor
Finisher / Asphalt paver
Mixer
Motor grader
Planer
Pneumatic roller
Recycler
Scraper
load & carry
Quarries
road construction
port & airport terminals
Get a quote Find a dealer

Why choose the MICHELIN XS [CONSTRUCTION] tyre?

For ADT and machine working in deep sand
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Square

Flotation

Wide tread band and large air volume
Optimized distribution of low ground pressure constraints with low ground contact pressure
Square

Productivity

Heavy loads at low inflation pressure
The productivity is possible with the Michelin low pressure casing conception. Strong, flexible radial casing with optimized sidewall.
Square

Robustness

Resistance to hot climat condition
Specific tyre conception to respond to hot condition and ultra violet light.

MICHELIN XS [CONSTRUCTION] Technology

Tyre Technology image The radial tyre

The radial tyre - The MICHELIN innovation that revolutionized tyre construction

Sold under the name MICHELIN X®, this tyre was a real breakthrough thanks to its exceptional performance: incredible longevity (it lasted 2 to 4 times longer than a conventional tyre), greater safety, and, above all, reduced vehicle fuel consumption.

Tyre Technical Specifications

Close
Select a dimension
back
Select a dimension
  • 18.00R25 E7 TL
  • 21.00R25 E7 TL
  • 29.5R25 E7 196E TL
  • Technical Specifications
  • Load & Pressure

Technical Specifications

Product MICHELIN XS [Michelin, Radial, Construction, Infrastructure] - 18.00R25
Overall Diameter 63 inch
Section width 19 inch
Approved rims 15.00/2.5
Recommended rims 13.00/2.5
Rolling circumference (mm) 190 inch
Filling volume 100% (lts) 532 l
Tread depth 0.8 inch
TRA code E-7
Min Dual Spacing 25.24 inch
CAI 276450

Load & Pressure

Take the load and type of work to be done into account when adjusting the pressure**

psi

15

22

29

36

44

51

58

65

73

87
(kg - lbs) desert-conditions-65-km-h-max

road-dual

2925

6449

3510

7738

4050

8929

4545

10020

5040

11111

5625

12401

6165

13591

7200

15873

sand

3600

7937

5050

11133

6350

13999

sand-dual

3240

7143

4545

10020

5715

12599

track

3250

7165

4050

8929

4950

10913

5750

12677

6600

14551

track-dual

2925

6449

3645

8036

4455

9822

5175

11409

5940

13095

road

3250

7165

3900

8598

4500

9921

5050

11133

5600

12346

6250

13779

6850

15102

8000

17637

**IMPORTANT

The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.

Technical Specifications

Technical Specifications

Product MICHELIN XS [Michelin, Radial, Construction, Infrastructure] - 18.00R25
Overall Diameter 63 inch
Section width 19 inch
Approved rims 15.00/2.5
Recommended rims 13.00/2.5
Rolling circumference (mm) 190 inch
Filling volume 100% (lts) 532 l
Tread depth 0.8 inch
TRA code E-7
Min Dual Spacing 25.24 inch
CAI 276450

Load & Pressure

Take the load and type of work to be done into account when adjusting the pressure**

psi

15

22

29

36

44

51

58

65

73

87
(kg - lbs) desert-conditions-65-km-h-max

road-dual

2925

6449

3510

7738

4050

8929

4545

10020

5040

11111

5625

12401

6165

13591

7200

15873

sand

3600

7937

5050

11133

6350

13999

sand-dual

3240

7143

4545

10020

5715

12599

track

3250

7165

4050

8929

4950

10913

5750

12677

6600

14551

track-dual

2925

6449

3645

8036

4455

9822

5175

11409

5940

13095

road

3250

7165

3900

8598

4500

9921

5050

11133

5600

12346

6250

13779

6850

15102

8000

17637

**IMPORTANT

The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.

Tyre Product Sheet and Databook

Find the technical and commercial specifications downloadable documents below.

Earthmover Warranty

Michelin technical data book Earthmover tyres - 2019 edition
