MICHELIN XMINE D2 PRO
Designed for extreme underground mining and quarry conditions. It offers improved aggression resistance and reduced downtime, thanks to new cables and NRF technology. The tyre also boasts an increased load capacity of up to 18% and enhanced tyre life due to optimized compounds.
Why choose the MICHELIN XMINE D2 PRO tyre?
Load capacity
Robustness
Treadlife

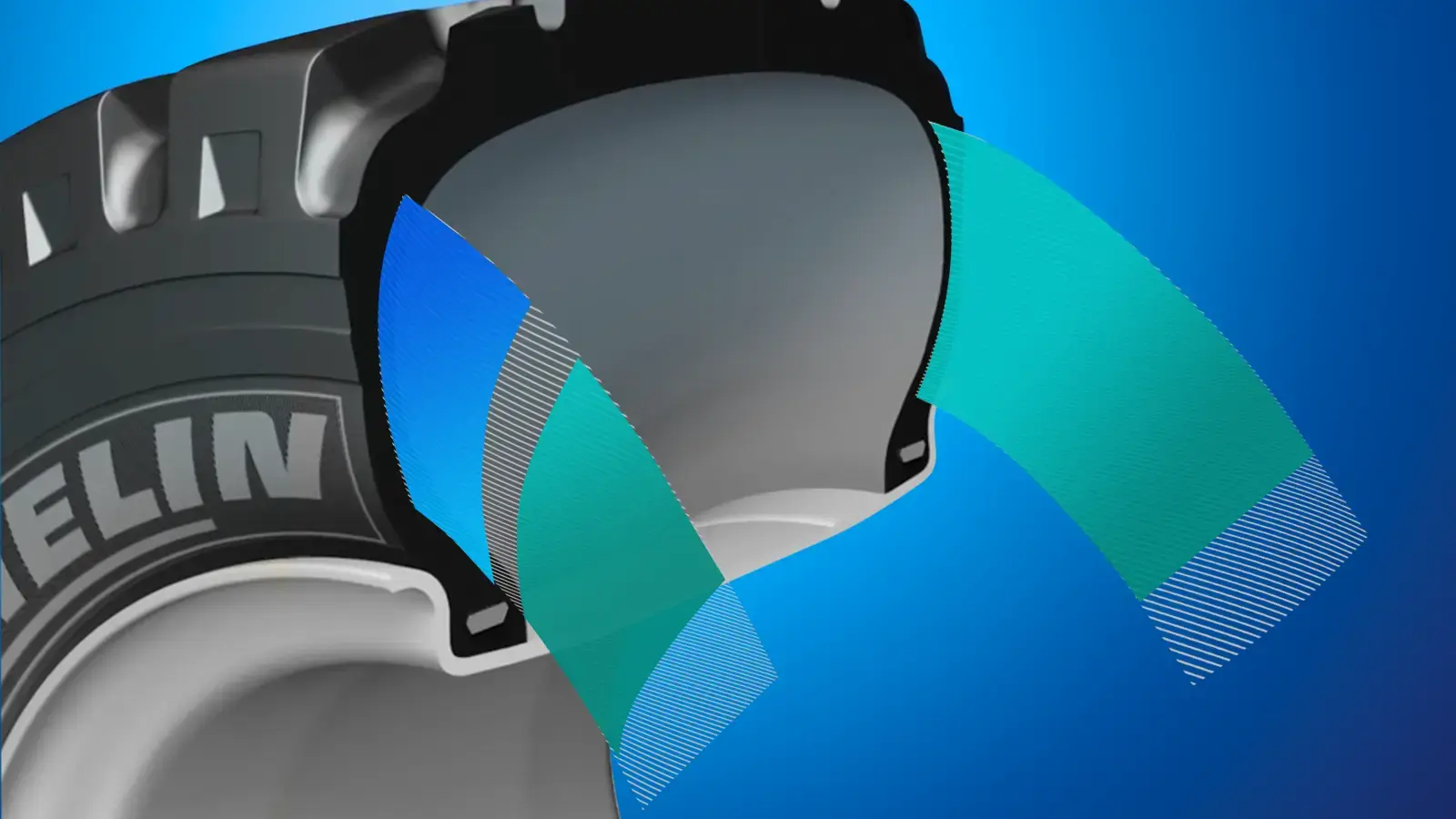

MICHELIN XMINE D2 PRO Technology
Tyre Technical Specifications
Technical Specifications
| Product | MICHELIN XMINE D2 PRO - 17.5R25 |
|---|---|
| Overall Diameter | 55 inch |
| Section width | 19 inch |
| Recommended rims | 14.00/1.5 |
| Rolling circumference (mm) | 4254 |
| Filling volume 100% (lts) | 285 l |
| Tread depth | 2.6 inch |
| TRA code | L-5 |
| CAI | 720557 |
Load & Pressure
|
psi |
44 |
51 |
58 |
65 |
73 |
80 |
87 |
94 |
102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | |||||||||
|
all-axles |
4250 9370 |
4750 10472 |
5300 11684 |
5800 12787 |
6300 13889 |
6700 14771 |
7100 15653 |
7500 16535 |
9000 19842 |
| (kg - lbs) loader | |||||||||
|
front-laden |
4750 10472 |
5450 12015 |
6000 13228 |
6500 14330 |
7100 15653 |
7500 16535 |
8000 17637 |
8500 18739 |
10000 22046 |
|
rear-unladen |
3800 8378 |
4360 9612 |
4800 10582 |
5200 11464 |
5680 12522 |
6000 13228 |
6400 14110 |
6800 14991 |
8000 17637 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN XMINE D2 PRO - 17.5R25 |
|---|---|
| Overall Diameter | 55 inch |
| Section width | 19 inch |
| Recommended rims | 14.00/1.5 |
| Rolling circumference (mm) | 4254 |
| Filling volume 100% (lts) | 285 l |
| Tread depth | 2.6 inch |
| TRA code | L-5 |
| CAI | 720557 |
Load & Pressure
|
psi |
44 |
51 |
58 |
65 |
73 |
80 |
87 |
94 |
102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | |||||||||
|
all-axles |
4250 9370 |
4750 10472 |
5300 11684 |
5800 12787 |
6300 13889 |
6700 14771 |
7100 15653 |
7500 16535 |
9000 19842 |
| (kg - lbs) loader | |||||||||
|
front-laden |
4750 10472 |
5450 12015 |
6000 13228 |
6500 14330 |
7100 15653 |
7500 16535 |
8000 17637 |
8500 18739 |
10000 22046 |
|
rear-unladen |
3800 8378 |
4360 9612 |
4800 10582 |
5200 11464 |
5680 12522 |
6000 13228 |
6400 14110 |
6800 14991 |
8000 17637 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Tyre Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
(1) Based on comparisons of the MICHELIN® XSM® D2+ PRO and X MINE® D2 PRO to the MICHELIN® XSM® D2+ and MICHELIN® X MINE® D2. Actual results may vary.
(2) Based upon improved aggression resistance and on computer modeling comparing the tread compounds included in the MICHELIN® XSM® D2+ PRO to the MICHELIN® XSM® D2+. Actual results may vary.
