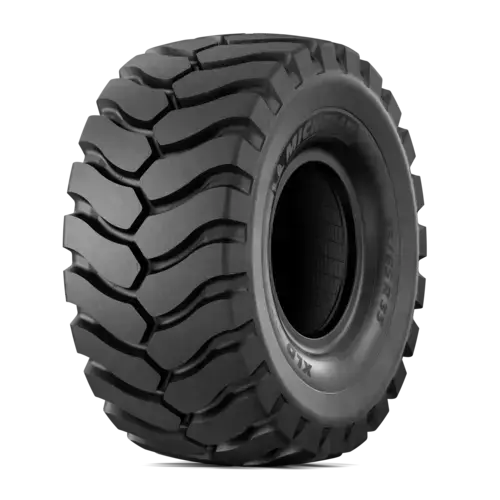

MICHELIN XLD D1A
Designed for loaders, dozers, and graders. It offers high stability, protection, and exceptional speed. Its open-tread design ensures efficient mud evacuation, while angled lugs provide superior grip. Reinforced belts and a custom compound make it ideal for aggressive conditions.
Why choose the MICHELIN XLD D1A tyre?
Mobility
Speed
Robustness
Tyre Technical Specifications
Technical Specifications
| Product | MICHELIN XLD D1A - 45/65R45 |
|---|---|
| Overall Diameter | 106 inch |
| Section width | 44 inch |
| Recommended rims | 36.00/4.5 |
| Rolling circumference (mm) | 8062 |
| Filling volume 100% (lts) | 3330 l |
| Load Index | 244 |
| Speed Index | A2 |
| Tread depth | 2.8 inch |
| TRA code | L-4 |
| CAI | 733149 |
Load & Pressure
|
psi |
58 |
65 |
73 |
80 |
87 |
94 |
|---|---|---|---|---|---|---|
| (kg - lbs) loader | ||||||
|
front-laden |
35500 78264 |
38750 85429 |
42500 93696 |
45000 99208 |
47500 104720 |
51500 113538 |
|
rear-unladen |
28400 62611 |
31000 68343 |
34000 74957 |
36000 79366 |
38000 83776 |
41200 90830 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN XLD D1A - 45/65R45 |
|---|---|
| Overall Diameter | 106 inch |
| Section width | 44 inch |
| Recommended rims | 36.00/4.5 |
| Rolling circumference (mm) | 8062 |
| Filling volume 100% (lts) | 3330 l |
| Load Index | 244 |
| Speed Index | A2 |
| Tread depth | 2.8 inch |
| TRA code | L-4 |
| CAI | 733149 |
Load & Pressure
|
psi |
58 |
65 |
73 |
80 |
87 |
94 |
|---|---|---|---|---|---|---|
| (kg - lbs) loader | ||||||
|
front-laden |
35500 78264 |
38750 85429 |
42500 93696 |
45000 99208 |
47500 104720 |
51500 113538 |
|
rear-unladen |
28400 62611 |
31000 68343 |
34000 74957 |
36000 79366 |
38000 83776 |
41200 90830 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
