Optimized for rigid dump trucks operating in quarries, delivering superior productivity and safety. Its robust design ensures long service life, offering excellent shock absorption and resistance to wear, punctures, and heat.

Rigid Dump Truck (RDT) 49"

Quarries

Get a quote Find a dealer

Why choose the MICHELIN X-QUARRY tyre?

Optimised productivity for your rigid dump trucks

Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.

Productivity

Maximizes productivity by enabling high performance

Its new crown design, C2 technology, and adapted under-tread layer allow the tyre to operate effectively on cycles up to 19 km/h, with optimized wear and enhanced shock absorption for longer service

Safety

Engineered for safe operation

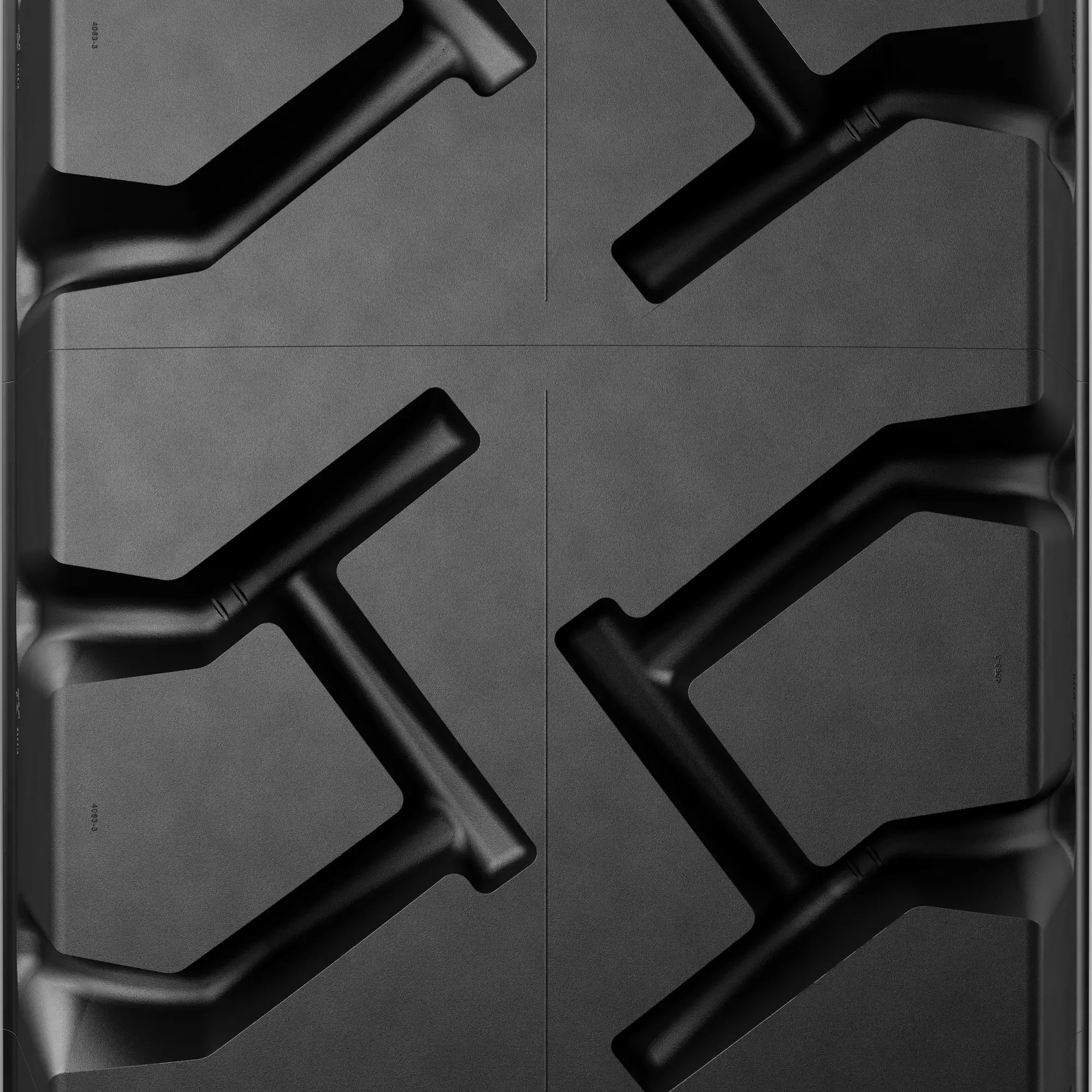

Thanks to an oblique tread pattern and continuous central tread offer high traction on slippery surfaces, improving lateral grip, steering precision, and reducing vibrations.

Treadlife

Offers durability in the harshest conditions.

The wide, square tread pattern and advanced rubber compounds ensure even wear, while the sidewall protection rib provides additional resistance to shocks, contributing to extended tyre longevity

MICHELIN X-QUARRY Technology

The radial tyre - The MICHELIN innovation that revolutionized tyre construction

Sold under the name MICHELIN X®, this tyre was a real breakthrough thanks to its exceptional performance: incredible longevity (it lasted 2 to 4 times longer than a conventional tyre), greater safety, and, above all, reduced vehicle fuel consumption.

Tyre Technical Specifications

Technical Specifications

Product	MICHELIN X-QUARRY [Michelin, Radial, Construction, Infrastructure] - 21.00R35
Overall Diameter	81 inch
Section width	24 inch
Approved rims	17.00/3.0
Recommended rims	15.00/3.0
Rolling circumference (mm)	246 inch
Filling volume 100% (lts)	952 l
Tread depth	2.6 inch
TRA code	E-4
Min Dual Spacing	27.68 inch
TKPH	220
CAI	765959

Load & Pressure

Take the load and type of work to be done into account when adjusting the pressure**

psi	65	73	80	87	94	102
(kg - lbs) transport
standard	11450 25243	12450 27448	13500 29762	14500 31967	15000 33069	15500 34172

psi

102

(kg - lbs) transport

standard

11450

25243

12450

27448

13500

29762

14500

31967

15000

33069

15500

34172

**IMPORTANT

The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.

Technical Specifications

Product	MICHELIN X-QUARRY [Michelin, Radial, Construction, Infrastructure] - 21.00R35
Overall Diameter	81 inch
Section width	24 inch
Approved rims	17.00/3.0
Recommended rims	15.00/3.0
Rolling circumference (mm)	246 inch
Filling volume 100% (lts)	952 l
Tread depth	2.6 inch
TRA code	E-4
Min Dual Spacing	27.68 inch
TKPH	220
CAI	765959

Load & Pressure

Take the load and type of work to be done into account when adjusting the pressure**

psi	65	73	80	87	94	102
(kg - lbs) transport
standard	11450 25243	12450 27448	13500 29762	14500 31967	15000 33069	15500 34172

psi

102

(kg - lbs) transport

standard

11450

25243

12450

27448

13500

29762

14500

31967

15000

33069

15500

34172

**IMPORTANT

Tyre Product Sheet and Databook

Find the technical and commercial specifications downloadable documents below.

Earthmover Warranty

Michelin technical data book Earthmover tyres - 2019 edition
