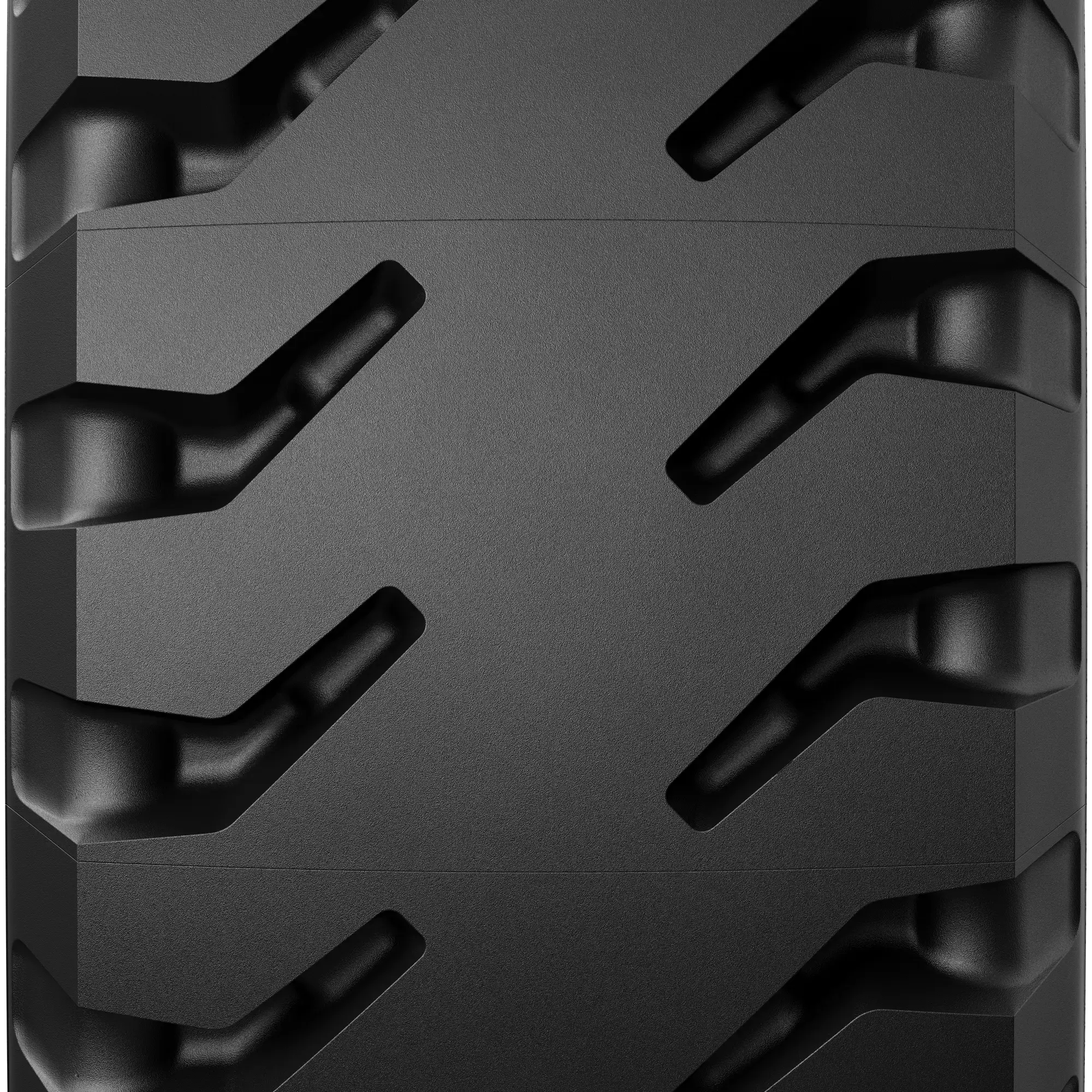

MICHELIN X MINE D2 (Underground Mining)
Built for extreme durability in select off road operations. Its reinforced design ensures excellent resistance to cuts, impacts, and punctures, while providing superior traction on rocky surfaces. This tyre is engineered for long-lasting performance, maximizing uptime and productivity in harsh environments.
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tyre lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN X MINE D2 (Underground Mining) tyre?
Traction
Robustness
Treadlife
Tyre Technical Specifications
Technical Specifications
| Product | MICHELIN X MINE D2 [Michelin, Radial, Mining, Underground] - 7.50R15 |
|---|---|
| Overall Diameter | 33 inch |
| Section width | 9 inch |
| Approved rims | 5.5-6.00S-6.5-B6.5 |
| Recommended rims | 6.0 |
| Rolling circumference (mm) | 2551 |
| Filling volume 100% (lts) | 39 l |
| Tread depth | 1.8 inch |
| TRA code | L-5 |
| CAI | 123342 |
Load & Pressure
|
psi |
44 |
51 |
54 |
58 |
65 |
73 |
80 |
87 |
102 |
116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-mine-machine | ||||||||||
|
all-axles |
1675 3693 |
1800 3968 |
1875 4134 |
1925 4244 |
2025 4464 |
2150 4740 |
2250 4960 |
2375 5236 |
2600 5732 |
2825 6228 |
| (kg - lbs) loader | ||||||||||
|
front-laden |
1850 4079 |
2000 4409 |
2075 4575 |
2150 4740 |
2250 4960 |
2400 5291 |
2500 5512 |
2650 5842 |
2900 6393 |
3150 6945 |
|
rear-unladen |
1475 3252 |
1600 3527 |
1650 3638 |
1725 3803 |
1800 3968 |
1925 4244 |
2000 4409 |
2125 4685 |
2325 5126 |
2525 5567 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN X MINE D2 [Michelin, Radial, Mining, Underground] - 7.50R15 |
|---|---|
| Overall Diameter | 33 inch |
| Section width | 9 inch |
| Approved rims | 5.5-6.00S-6.5-B6.5 |
| Recommended rims | 6.0 |
| Rolling circumference (mm) | 2551 |
| Filling volume 100% (lts) | 39 l |
| Tread depth | 1.8 inch |
| TRA code | L-5 |
| CAI | 123342 |
Load & Pressure
|
psi |
44 |
51 |
54 |
58 |
65 |
73 |
80 |
87 |
102 |
116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-mine-machine | ||||||||||
|
all-axles |
1675 3693 |
1800 3968 |
1875 4134 |
1925 4244 |
2025 4464 |
2150 4740 |
2250 4960 |
2375 5236 |
2600 5732 |
2825 6228 |
| (kg - lbs) loader | ||||||||||
|
front-laden |
1850 4079 |
2000 4409 |
2075 4575 |
2150 4740 |
2250 4960 |
2400 5291 |
2500 5512 |
2650 5842 |
2900 6393 |
3150 6945 |
|
rear-unladen |
1475 3252 |
1600 3527 |
1650 3638 |
1725 3803 |
1800 3968 |
1925 4244 |
2000 4409 |
2125 4685 |
2325 5126 |
2525 5567 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Tyre Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
