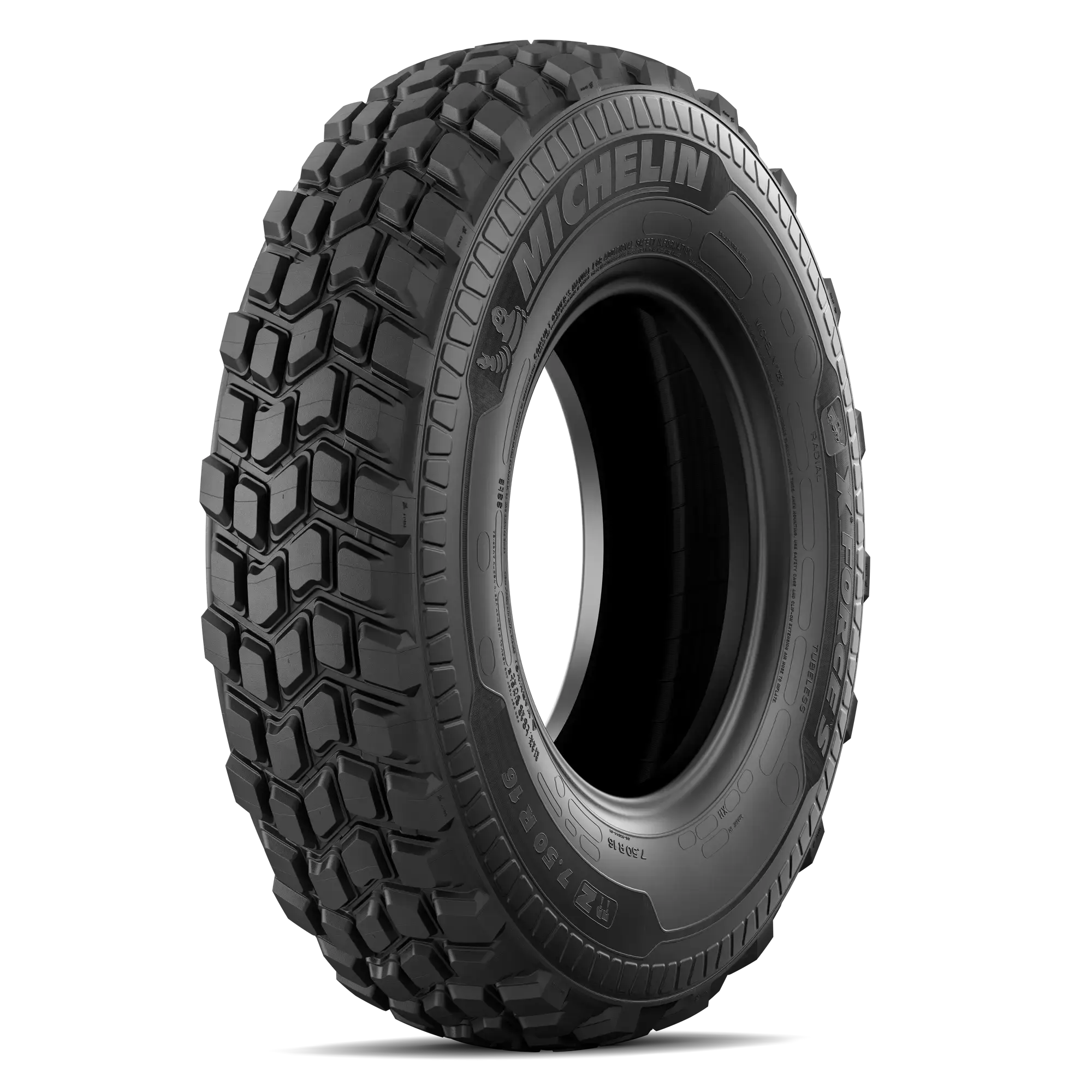

MICHELIN X FORCE S
Specially designed for off-road vehicles that drive on all terrains & require mobility & flotation on non cohesive material as sand.
Why choose the MICHELIN X FORCE S tyre?
Mobility
Safety
Tyre Technical Specifications
Technical Specifications
| Product | MICHELIN X FORCE S [Michelin, Radial, Defense mobility, None] - 7.50R16 |
|---|---|
| Overall Diameter | 32 inch |
| Section width | 8 inch |
| Recommended rims | 6.00G |
| Rolling circumference (mm) | 2520 |
| Filling volume 100% (lts) | 57 l |
| Load Index | 116 |
| Speed Index | N |
| Max load per tyre single | 2500 kg / 5512 lbs |
| Tread depth | 0.5 inch |
| Min Dual Spacing | 9.45 inch |
| CAI | 298993 |
Load & Pressure
|
psi |
36 |
40 |
44 |
47 |
51 |
54 |
58 |
62 |
65 |
69 |
73 |
76 |
80 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) axle-load | |||||||||||||
|
nominal |
1300 2866 |
1400 3086 |
1500 3307 |
1600 3527 |
1700 3748 |
1800 3968 |
1900 4189 |
2000 4409 |
2100 4630 |
2200 4850 |
2300 5071 |
2400 5291 |
2500 5512 |
|
nominal-dual |
2454.3999023438 5411 |
2643.1999511719 5827 |
2832 6243 |
3020.8000488281 6660 |
3209.6000976562 7076 |
3398.3999023438 7492 |
3587.1999511719 7908 |
3776 8325 |
3964.8000488281 8741 |
4153.6000976562 9157 |
4342.3999023438 9573 |
4531.2001953125 9990 |
4720 10406 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN X FORCE S [Michelin, Radial, Defense mobility, None] - 7.50R16 |
|---|---|
| Overall Diameter | 32 inch |
| Section width | 8 inch |
| Recommended rims | 6.00G |
| Rolling circumference (mm) | 2520 |
| Filling volume 100% (lts) | 57 l |
| Load Index | 116 |
| Speed Index | N |
| Max load per tyre single | 2500 kg / 5512 lbs |
| Tread depth | 0.5 inch |
| Min Dual Spacing | 9.45 inch |
| CAI | 298993 |
Load & Pressure
|
psi |
36 |
40 |
44 |
47 |
51 |
54 |
58 |
62 |
65 |
69 |
73 |
76 |
80 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) axle-load | |||||||||||||
|
nominal |
1300 2866 |
1400 3086 |
1500 3307 |
1600 3527 |
1700 3748 |
1800 3968 |
1900 4189 |
2000 4409 |
2100 4630 |
2200 4850 |
2300 5071 |
2400 5291 |
2500 5512 |
|
nominal-dual |
2454.3999023438 5411 |
2643.1999511719 5827 |
2832 6243 |
3020.8000488281 6660 |
3209.6000976562 7076 |
3398.3999023438 7492 |
3587.1999511719 7908 |
3776 8325 |
3964.8000488281 8741 |
4153.6000976562 9157 |
4342.3999023438 9573 |
4531.2001953125 9990 |
4720 10406 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Related Services and Solutions
Low ground pressure constraints for flotation on sand Casing design to operate at various pressures thanks to its compatibility with CTIS Steering on road & track
