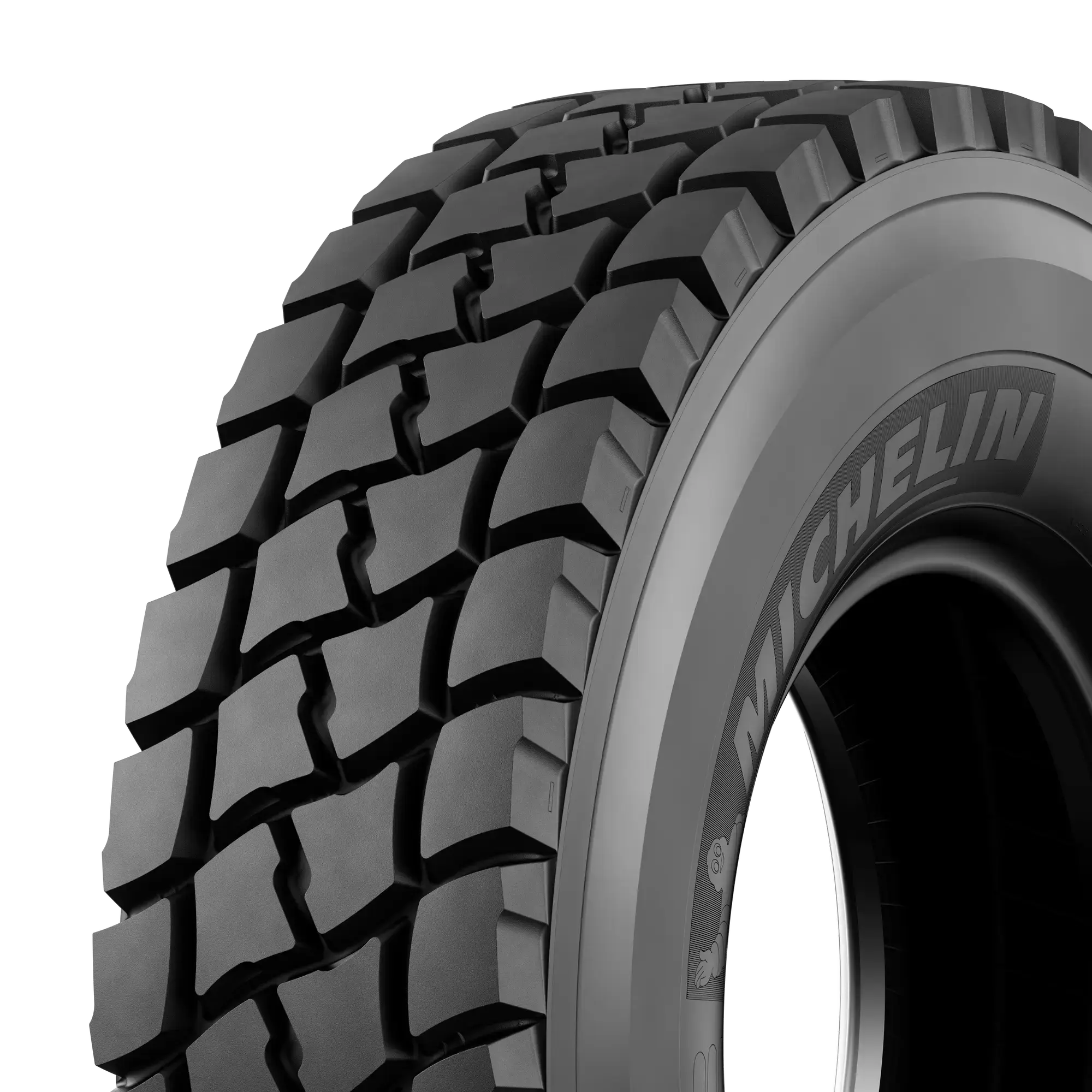

MICHELIN XMH S
Designed for heavy-duty applications in mining and construction. It features a robust tread pattern that provides exceptional traction and stability on various terrains, including muddy and rocky surfaces. This tyre is engineered for durability, offering high resistance to wear and punctures, ensuring long service life.
Why choose the MICHELIN XMH S tyre?
Safety
Productivity
Treadlife
MICHELIN XMH S Technology
Tyre Technical Specifications
Technical Specifications
| Product | MICHELIN XMH S [Michelin, Radial, Construction, Infrastructure] - 385/95R24 |
|---|---|
| Overall Diameter | 54 inch |
| Section width | 15 inch |
| Approved rims | 10.0/2.0-9.0-9.00V |
| Recommended rims | 10.00W |
| Rolling circumference (mm) | 164 inch |
| Filling volume 100% (lts) | 284 l |
| Load Index | 170 |
| Speed Index | E |
| Tread depth | 0.9 inch |
| TRA code | E-2 |
| CAI | 957157 |
Load & Pressure
|
psi |
73 |
87 |
102 |
116 |
131 |
|---|---|---|---|---|---|
| (kg - lbs) crane-and-similar-specialized-machine | |||||
|
30 km/h 19 mph |
4860 10714 |
5880 12963 |
6460 14242 |
7000 15432 |
7800 17196 |
|
40 km/h 25 mph |
4635 10218 |
5610 12368 |
6165 13591 |
6675 14716 |
7450 16424 |
|
50 km/h 31 mph |
4410 9722 |
5340 11773 |
5865 12930 |
6355 14010 |
7100 15653 |
|
60 km/h 37 mph |
4190 9237 |
5070 11177 |
5565 12269 |
6030 13294 |
6720 14815 |
|
65 km/h 40 mph |
4020 8863 |
4865 10725 |
5345 11784 |
5790 12765 |
6450 14220 |
|
70 km/h 43 mph |
3740 8245 |
4525 9976 |
4970 10957 |
5385 11872 |
6000 13228 |
|
80 km/h 50 mph |
3086 6803 |
3735 8234 |
4100 9039 |
4445 9800 |
4950 10913 |
|
90 km/h 56 mph |
2620 5776 |
3170 6989 |
3480 7672 |
3770 8311 |
4200 9259 |
|
100 km/h 62 mph |
2245 4949 |
2715 5986 |
2980 6570 |
3230 7121 |
3600 7937 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN XMH S [Michelin, Radial, Construction, Infrastructure] - 385/95R24 |
|---|---|
| Overall Diameter | 54 inch |
| Section width | 15 inch |
| Approved rims | 10.0/2.0-9.0-9.00V |
| Recommended rims | 10.00W |
| Rolling circumference (mm) | 164 inch |
| Filling volume 100% (lts) | 284 l |
| Load Index | 170 |
| Speed Index | E |
| Tread depth | 0.9 inch |
| TRA code | E-2 |
| CAI | 957157 |
Load & Pressure
|
psi |
73 |
87 |
102 |
116 |
131 |
|---|---|---|---|---|---|
| (kg - lbs) crane-and-similar-specialized-machine | |||||
|
30 km/h 19 mph |
4860 10714 |
5880 12963 |
6460 14242 |
7000 15432 |
7800 17196 |
|
40 km/h 25 mph |
4635 10218 |
5610 12368 |
6165 13591 |
6675 14716 |
7450 16424 |
|
50 km/h 31 mph |
4410 9722 |
5340 11773 |
5865 12930 |
6355 14010 |
7100 15653 |
|
60 km/h 37 mph |
4190 9237 |
5070 11177 |
5565 12269 |
6030 13294 |
6720 14815 |
|
65 km/h 40 mph |
4020 8863 |
4865 10725 |
5345 11784 |
5790 12765 |
6450 14220 |
|
70 km/h 43 mph |
3740 8245 |
4525 9976 |
4970 10957 |
5385 11872 |
6000 13228 |
|
80 km/h 50 mph |
3086 6803 |
3735 8234 |
4100 9039 |
4445 9800 |
4950 10913 |
|
90 km/h 56 mph |
2620 5776 |
3170 6989 |
3480 7672 |
3770 8311 |
4200 9259 |
|
100 km/h 62 mph |
2245 4949 |
2715 5986 |
2980 6570 |
3230 7121 |
3600 7937 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
