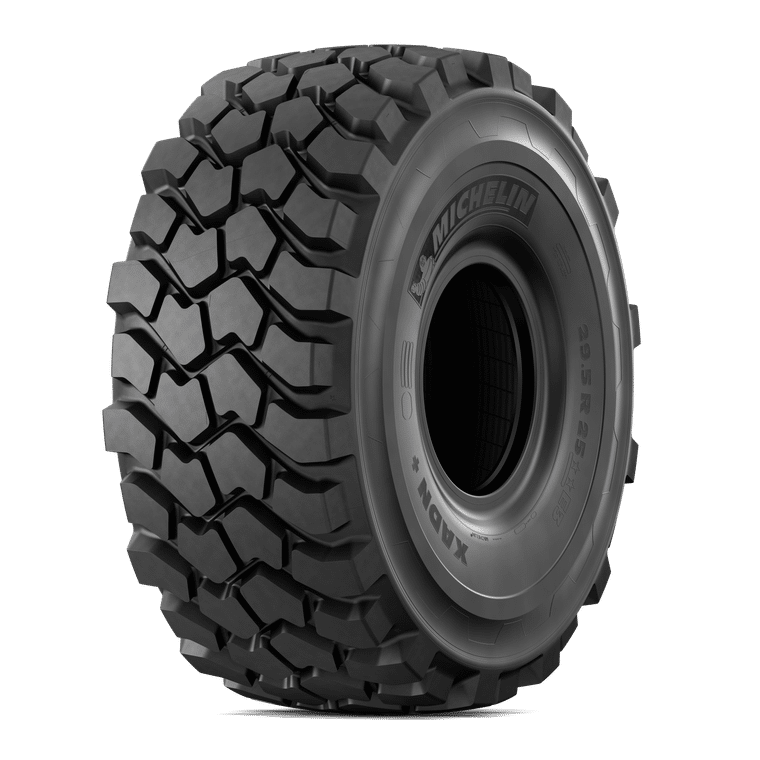

MICHELIN XADN+
Optimize your operational cost thanks to an exceptional tyre life.
Why choose the MICHELIN XADN+ tyre?
Productivity
Traction
Treadlife
MICHELIN XADN+ Technology
Tyre Technical Specifications
Technical Specifications
| Product | MICHELIN XADN+ [Michelin, Radial, Construction, Infrastructure] - 23.5R25 |
|---|---|
| Overall Diameter | 63 inch |
| Section width | 24 inch |
| Recommended rims | 19.50/2.5 |
| Rolling circumference (mm) | 190 inch |
| Filling volume 100% (lts) | 702 l |
| Load Index | 185 |
| Speed Index | B |
| Tread depth | 1.5 inch |
| TRA code | E-3 |
| TKPH | 207 |
| CAI | 295773 |
Load & Pressure
|
psi |
29 |
36 |
44 |
51 |
54 |
58 |
65 |
73 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) articulated-dump-truck | ||||||||
|
standard |
4930 10869 |
5650 12456 |
6380 14065 |
7100 15653 |
7450 16424 |
7800 17196 |
8550 18850 |
9250 20393 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN XADN+ [Michelin, Radial, Construction, Infrastructure] - 23.5R25 |
|---|---|
| Overall Diameter | 63 inch |
| Section width | 24 inch |
| Recommended rims | 19.50/2.5 |
| Rolling circumference (mm) | 190 inch |
| Filling volume 100% (lts) | 702 l |
| Load Index | 185 |
| Speed Index | B |
| Tread depth | 1.5 inch |
| TRA code | E-3 |
| TKPH | 207 |
| CAI | 295773 |
Load & Pressure
|
psi |
29 |
36 |
44 |
51 |
54 |
58 |
65 |
73 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) articulated-dump-truck | ||||||||
|
standard |
4930 10869 |
5650 12456 |
6380 14065 |
7100 15653 |
7450 16424 |
7800 17196 |
8550 18850 |
9250 20393 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
Tyre Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
(1) See the 2022-2023 MICHELIN technical databook Earthmover tyres for the 29.5 R25 size. Reference value got with A-type rubber compound. Possibility of extension based on the need to be validated through specific study, please consult your local Michelin Technical Representative
(1) Compared to Premium competitors field study in real life conditions made by Michelin for 9 years 2008-2017, on 114 tyres in Africa, India, Middle East, Australia, Asia South Pacific and Europe ; same size (23.5 R 25, 26.5 R 25 and 29.5 R 25) and same usage
