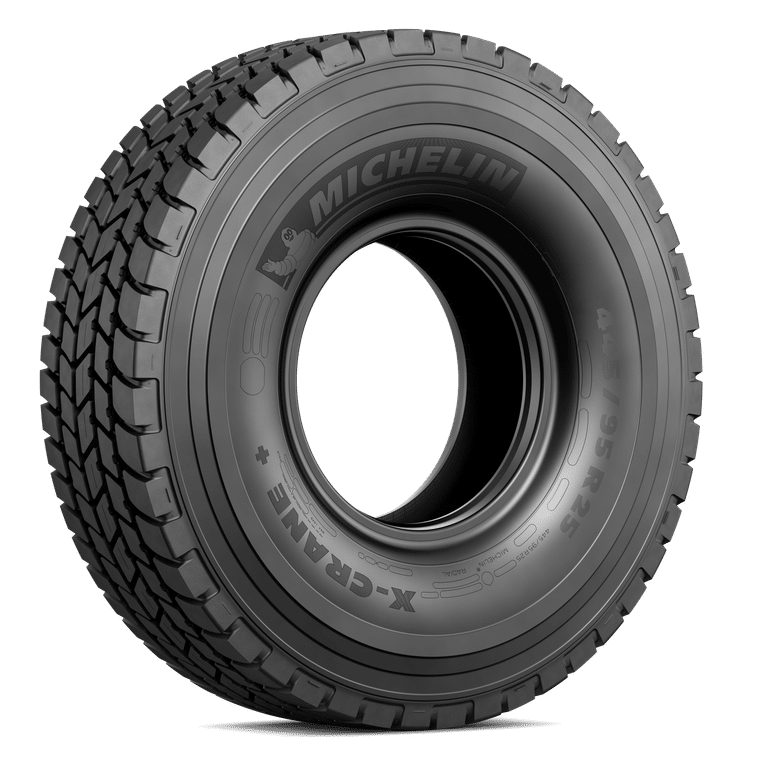

MICHELIN X-CRANE + / AT
Lifting your productivity to new heights
- Lower Operating Costs
- Operator Comfort
- Better for the environment
Edito xcrane at work Tyre
pneu minning MICHELIN xcrane
picto dollar savings adjusted
Logo picto safety small Tyre
Logo picto ecolo small Tyre
RELATED SERVICES AND SOLUTIONS
Technical Specifications
| Product | MICHELIN X-CRANE AT - 385/95R24 |
|---|---|
| Overall Diameter | 54 inch |
| Section width | 15 inch |
| Approved rims | 10.0-11.25/1.3 |
| Recommended rims | 10.00W |
| Rolling circumference (mm) | 164 inch |
| Filling volume 100% (lts) | 284 l |
| Load Index | 170 |
| Speed Index | F |
| Tread depth | 0.9 inch |
| CAI | 778245 |
Load & Pressure
|
psi |
73 |
87 |
102 |
116 |
131 |
|---|---|---|---|---|---|
| (kg - lbs) crane-and-similar-specialized-machine | |||||
|
30 km/h 19 mph |
4750 10472 |
5440 11993 |
6125 13503 |
6815 15025 |
7500 16535 |
|
40 km/h 25 mph |
4370 9634 |
5005 11034 |
5635 12423 |
6270 13823 |
6900 15212 |
|
50 km/h 31 mph |
4255 9381 |
4870 10737 |
5490 12103 |
6105 13459 |
6720 14815 |
|
60 km/h 37 mph |
4180 9215 |
4785 10549 |
5390 11883 |
5995 13217 |
6600 14551 |
|
65 km/h 40 mph |
4085 9006 |
4675 10307 |
5270 11618 |
5860 12919 |
6450 14220 |
|
70 km/h 43 mph |
3990 8796 |
4570 10075 |
5145 11343 |
5725 12621 |
6300 13889 |
|
80 km/h 50 mph |
3800 8378 |
4350 9590 |
4900 10803 |
5450 12015 |
6000 13228 |
|
90 km/h 56 mph |
3570 7871 |
4090 9017 |
4605 10152 |
5120 11288 |
5640 12434 |
|
100 km/h 62 mph |
3230 7121 |
3700 8157 |
4165 9182 |
4630 10207 |
5100 11244 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
